WELCOME TO WELLFORCE INDUSTRIES

WELLFORCE INDUSTRIES is a professionally managed company with the objective of manufacturing and marketing of superior quality submersible pumps to meet the requirements of our customers in India and abroad. Its products enjoy very good popularity & reputation among its customers on account of the invariably high standards quality of its products backed by expert workmanship & impeccable after sales services.

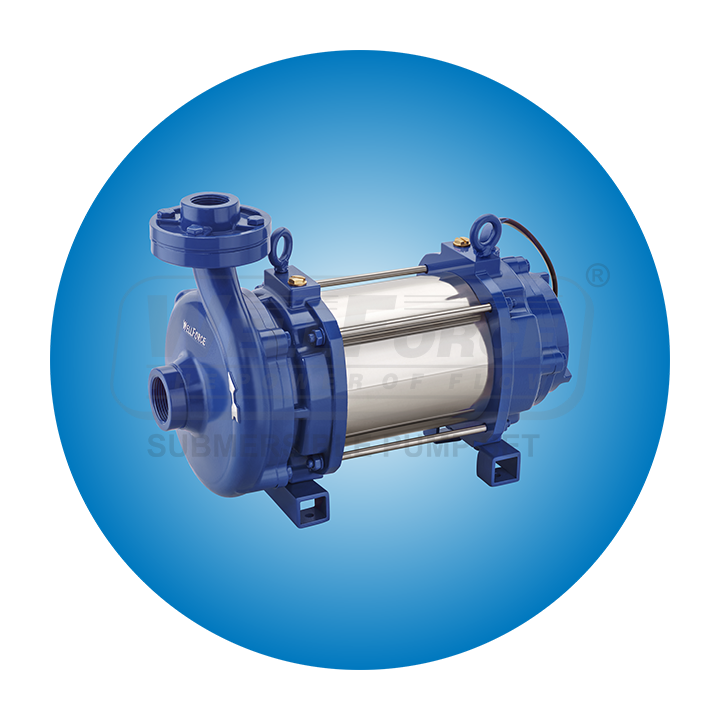

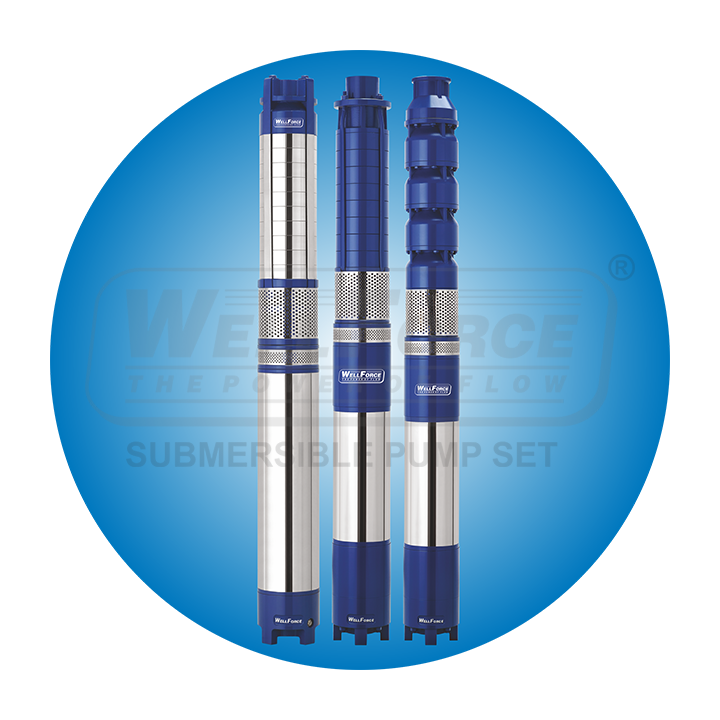

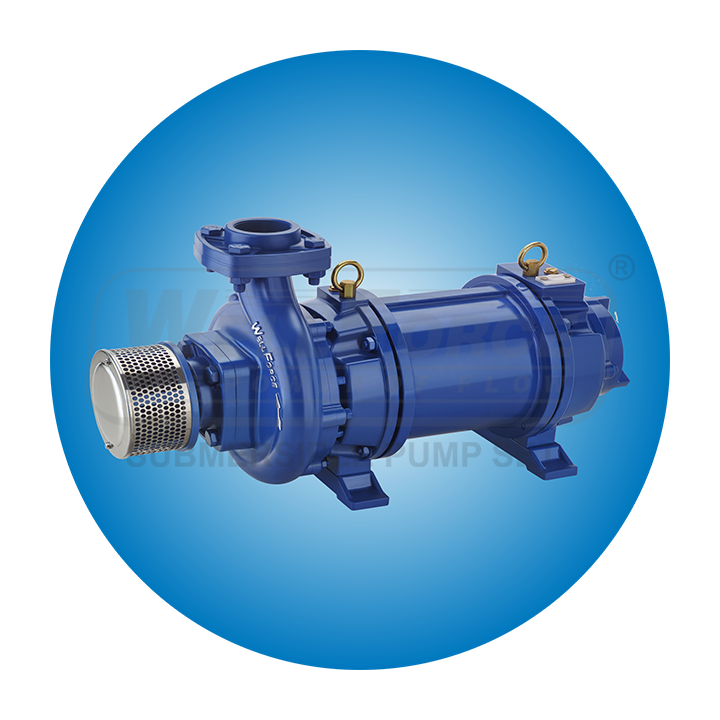

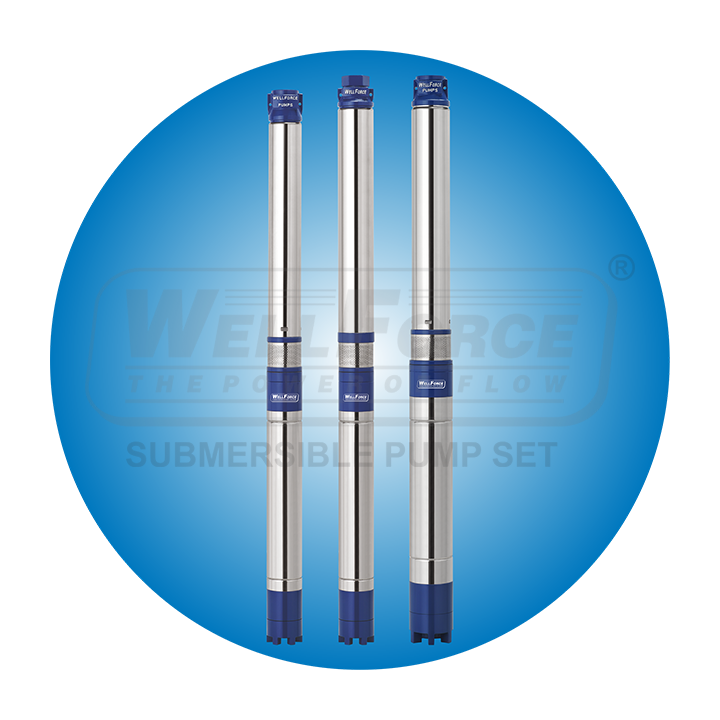

A young team of technologies, who are well educated and experienced, in the business of submersible owns the company. The company's main strength is its quality and its innovative design. The products are designed in such a way that gives utmost satisfaction to different customers as per their needs. The company's product range includes V-3, V-4, and V-6 and open well submersible Pumps. The company's aim is to provide value for money to its Customers.

Our Profile

Company Profile

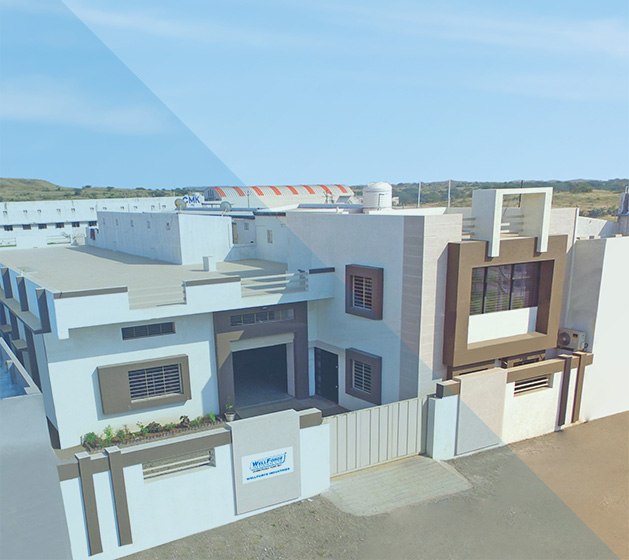

The company is established from many years as a well located unit, engaged in manufacturing of Submersible pumps.

WELLFORCE Pumps has successfully developed its cost efficient indigenous technology for manufacture of fully fabricated stainless steel pumps sets with the quality level at par with internationally recognized pump sets. Well Force Pumps takes care of the customer's need by supplying them the quality product as per international standards for their total satisfaction.

We manufacture and export energy efficient pumps and motors such as submersible pumps, submersible motors and many more. The company is fully committed to deliver timely and to extend effective services besides maintaining the quality levels. Moving on the packing department which again in a vital stage before the product actually reaches the hands of the end-users.

Thoughtfully developed packaging parameter not only provides for safe shipments but also adds to the importance of individual pumps. In pursuit of excellence, the company will adopt practices that support conservation, sustenance and rejuvenation of energy, environment and natural resources.

This would be achieved by educating our people, continual improvement of technology and processes and application of research. This policy has been communicated to all employees and will be made available to public on demand.



Our Products

We are committed to provide complete water solution to our customer. We produce wide range of domestic & agricultural pumps of different capacities to meet different needs of the customers. We have more than 350 ISI marked models in our product range. We are producing a specially designed export quality stainless steel pumps which is known for its high efficiency & long durability.

There is no synonym of Quality. We have stringent quality control steps at every stage of production. We deliver not only quality products but also deliver trust to our valuable customers. We understands that only quality established a long & strong relation between customers & company.

Photo Gallery







Product Quality

Research & Development :

Knowledge and comprehensive design capabilities being the core competency of our organization. The research & development team which comprises dedicated professionals is constantly developing technology to meet the new challenges.

About the Products :

The motors


  • Squirrel cage type totally enclosed motor, suitable for single and three phase, 230 & 415 volts , 50Hz, A.C. Supply.
  • Stator fitted in stainless steel pipe, lamination.
  • Dual seals and sand guards are provided for protection and contamination of outside bore well water.
  • Winding wire is made from highly water resistance PVC coated Copper wire.
  • Starors and rotors are impregnated in varnish under vacuum and backed under controlled temperature to avoid rusting in water.
  • Rotor assembly is dynamically balanced on computerized machine for vibration free operation.
  • Rotor shaft is made of S.S. 410 / 431.
  • Rotor bars are of electrolytic grade copper.
  • All the bush & Bearing are water lubricated.
  • The ultimate stainless steel segmental tilting pad thrust bearing adds life to rotor.
  • The revolving thrust plate is made from bronze and fitted with ferrobestos security fixed to the bronze plate.
  • The Rubber diaphragm is provided at the base of the motor to equalize pressure changes caused by variation in temperature during operation.

The Pump


  • It is vertically multistage pump with either radial flow a mixed flow type bronze impeller, which is dynamically balanced.
  • All parts are closed grained graded CI with smooth profiles without any defects.
  • All the Bearing bush are self water lubricated type.
  • The Pump shaft sleeves and coupling are manufactured from stainless steel.
  • Impeller and sleeves are securely fixed on SS Shaft with SS Key.
  • Brass or SS suction strainer is provided to avoid entry of suspended material in water.
  • To protect cable from being wearing out during installation cable guards are provide all along the pump body.
  • The Pumps Sets are manufacture and tested as per IS: 8034-2002

Special Features


  • Due to modern technology and turbo design the initial investment is low.
  • Due to Highly Graded materials and high accuracy testing equipment, power consumption of motor is very low
  • Using genuine and standard quality raw material all motors and pumps are interchangeable HP wise. Our all Parts are produced in our factory and are interchangeable.
  • Designed Suitable to work even at voltage variation / low voltage, minimum starting voltage in 1Ø-140V and 3Ø-350V
  • The pump is efficient even the low voltage and maintenance cost is very low.
